OPTRONICS OPCC-6-112-01

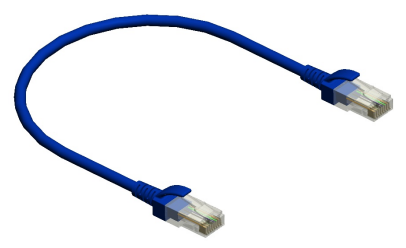

CAT6 UTP 4P RJ45 Patch Cord 1mtr -PVC GREY – Continuity Tested
No products in the cart.
7.70 AED
OPTRONICS OPCC-6-112-01
CAT6 UTP 4P RJ45 Patch Cord 1mtr -PVC GREY – Continuity Tested
Available on backorder
DESCRIPTION
OPTRONICS OPCC-6-112-01
CAT6 UTP 4P RJ45 Patch Cord 1mtr -PVC GREY – Continuity Tested
NORDEN 121-31T18024B
Category 6 UTP Patch Panel Blank Tool Less 24 Port
DESIGN & MATERIALS
Panel Type Flat
Panel Style Blank
Mounting Style Tool Less (Module)
Panel Width 483 mm (19”)
Panel Height 1U: 44.0 mm, 2U: 88.4 mm
Panel Depth 79.5 mm
Outlet Style Unkeyed RJ-45
Outlets 24 & 48 Ports
IDC Contact 45° secure, gas tight connection
Connector Module Holder High Impact, Flame-Retardant Plastic Compound, UL 94 V-0
Cover Colour and Material Black, Powder Coated Steel
STANDARDS
Wiring Standards EIA/TIA 568 A/B
Flammability rating UL 94V-0
Safety Rating UL1863
COMMSCOPE 760092429 | MGS600-262
GigaSPEED X10D® MGS600 Series Information Outlet, white
General Specifications
ANSI/TIA Category 6A
Cable Type Unshielded
Color White
Conductor Type Solid | Stranded
Termination Type IDC
Wiring T568A | T568B
Dimensions
Height 20.32 mm | 0.8 in
Width 20.38 mm | 0.802 in
Depth 30.48 mm | 1.2 in
Compatible Conductor Gauge, solid 22 AWG | 24 AWG
Compatible Conductor Gauge, stranded 22 AWG | 24 AWG
Electrical Specifications
Contact Resistance Variation, maximum 20 mOhm
Contact Resistance, maximum 100 mOhm
NEXANS
· For DIN-Rail mount (35mm)
· Data connection for the industry
· For up to 6 copper of fibre optic Snap-In connectors (not included)
· Splice trays as accessories
· For technical enclosures, Wireless Access Points, Industrial cabinets
· Snap-In connectors not included
· Robust metal body, powder coated
· IP20 protection rating with individual dust shutters
Possibility of Individual port colour coding through coloured shutter
· up to 6 LANmark RJ45 or GG45 Snap-In jacks
· up to 6 SC Snap-In couplers (6 fibres)
· up to 3 SC duplex Snap-In couplers (6 fibres)
· up to 6 LC duplex Snap-In couplers (12 fibres)
·
· Mix of copper jacks and optic adapters possible
· Strain release through cable gland or tie wraps
· Removable (screws) side cover
Type of cables
· Shielded Industrial Category 6 and 7 data cables, AWG 24 to AWG23
· Fiber optic cables up to 15mm diameter
· Simplex – Duplex and breakout fibre optic cables
· Tight buffer or loose tube fibre optic cables
· Pre-terminated cables
