Cat6a RJ45 Patch Leads
653508 DATWYLER RJ45 1M Patch Cords Cat.6A
29.00 AEDAdd to cartDATWYLER 653508
RJ45 patch cords Cat.6A (IEC) 500 MHz
Description
Shielded patch cords and connection cables with shielded RJ45 plug on both ends, fitted with an
overmoulding and an anti-snag boot in the same colour as the cable sheath and with latch protection.
The cable CU 7702 flex 4P (Cat.7) offers excellent Next and impedance values due to the individually
foil screened pairs (PiMF).
Due to the overall copper braid, the patch cables have an excellent screen performance and are
highly flexible. They are optimized for the transmission of CATV signals up to 862 MHz.
The pach cords meet all the requirements of Category 6A (IEC) and the limit values stipulated for
Class EA cabling links (Channels) for 10GBase-T applications.
Standard assortment: from 0.5 m up to 20 m.
Customised adjustments (anti-snag boot, termination, label) are available at short notice.6APLG-S6A LEVITON Cat 6A Universal Tool-Free Plug
56.00 AEDAdd to cartLEVITON 6APLG-S6A
Cat 6A Universal Tool-Free Plug
DESCRIPTION
The Cat 6A Universal Tool-Free Plug supports 10GBASE-T networks. The universal
connector provides superior alien crosstalk (AXT) suppression and protects critical data
from potential EMI/RFI (electromagnetic interference/radio frequency interference). The
plug is ideal for government, healthcare, manufacturing, transportation, gaming, and
other environments where EMI/RFI and/or security may be a concern. The plug is
especially useful for connecting directly to Ethernet devices in fixed locations.
Features and Benefits
– Offers easy field termination without special tools
– Robust die-cast housing provides durability and shielding benefits
Shielding provides EMI/RFI protection, signal isolation, and excellent alien
crosstalk (AXT) suppression
–
Terminates from 26- to 22-gauge solid or stranded conductors for use on various
cable types– 360° shield housing provides secure data transmission
– Long release latch ensures easy insertion and removal in confined spaces
Leviton Manufacturing Co., Inc.760184507 COMMSCOPE U/UTP High Density RJ45 24 Port Patch Panel
134.69 AEDAdd to cartCOMMSCOPE 760184507
FlexiMAX U/UTP High Density Patch Panel
Product Classification
Regional Availability EMEA
Portfolio SYSTIMAX®
Product Type RJ45 patch panel
General Specifications
Cable Type Unshielded
Color Black
Intelligence Type Passive
Rack Type EIA 19 in
Rack Units 1
Total Ports, quantity 24
Dimensions
Height 43.69 mm | 1.72 in
Width 482.6 mm | 19 in
Depth 105.92 mm | 4.17 in
Material Specifications
Material Type High-impact, flame retardant, thermoplastic | Powder-coated steel- BELDEN, Cat6 Accessories, Cat6 RJ45 Patch Leads, Cat6a Accessories, Cat6a RJ45 Patch Leads, Structured Networking
C624106003M BELDEN Copper Patch Cord, Cat6A UTP, 3 Mtr, Blue, LSZH
30.00 AEDAdd to cartBELDEN C624106003M
Copper Patch Cord, Cat6A UTP, 3 Mtr, Blue, LSZH
DESCRIPTION
Horizontal and building cabling. Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet),
100 Base-T, 10 Base-T, FDDI, ATM - BELDEN, Cat5E, Cat6 Accessories, Cat6 RJ45 Patch Leads, Cat6a Accessories, Cat6a RJ45 Patch Leads, Structured Networking
C624108001M BELDEN Copper Patch Cord, Cat6A UTP, 1 Mtr, Grey, LSZH
21.00 AEDAdd to cartBELDEN C624108001M
Copper Patch Cord, Cat6A UTP, 1 Mtr, Grey, LSZH
DESCRIPTION
CAT6+ Copper Patch Cord, UTP, LSZH
Horizontal and building cabling. Support current and future Category 6 and 5e applications, such as: 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI,

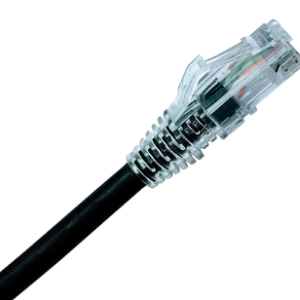

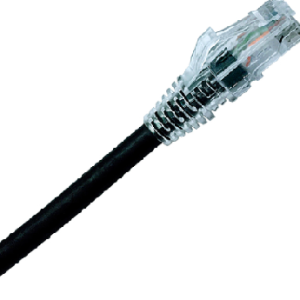

CO15582-01F082 | PCOSP-6AU-BK-82FT COMMSCOPE Cat 6A, UTP, Outdoor Patch Cord
222.00 AEDAdd to cartCOMMSCOPE CO15582-01F082 | PCOSP-6AU-BK-82FT
Cat 6A, UTP, Outdoor Patch Cord
DESCRIPTION
ANSI/TIA Category 6A
Cable Type U/UTP (unshielded)
Conductor Type Solid
Jacket Color Black
Pairs, quantity 4

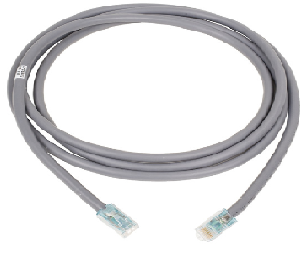

Wiring T568BCPCSSZ2-03 360GS10E-L-DG COMMSCOPE Cat6A U/UTP Patch Cord
53.00 AEDAdd to cartCOMMSCOPE CPCSSZ2-03 360GS10E-L-DG
GigaSPEED X10D® 360GS10E Solid Low Smoke Zero Halogen Cordage Modular Patch Cord,Dark Gray Jacket
General Specifications
ANSI/TIA Category 6A
Cable Type U/UTP (unshielded)
Conductor Type Solid
Interface Feature, connector A Standard
Interface Feature, connector B Standard
Interface, Connector A RJ45 plug
Interface, Connector B RJ45 plug
Jacket Color Dark gray
Pairs, quantity 4
Wiring T568B
Dimensions
Cable Assembly Length, minimum (ft) 3
Cable Assembly Length, maximum (ft) 100
Cable Assembly Length, minimum (m) 1
Cable Assembly Length, maximum (m) 30
