Cat6a Modules & Outlets
760092361 | MGS600-003 COMMSCOPE Cat6A Information Outlet, Black
62.46 AEDAdd to cartCOMMSCOPE 760092361 | MGS600-003
GigaSPEED X10D® MGS600 Series Information Outlet, black
General Specifications
ANSI/TIA Category 6A
Cable Type Unshielded
Color Black
Conductor Type Solid | Stranded
Termination Type IDC
Wiring T568A | T568B
Dimensions
Height 20.32 mm | 0.8 in
Width 20.38 mm | 0.802 in
Depth 30.48 mm | 1.2 in
Compatible Conductor Gauge, solid 22 AWG | 24 AWG
Compatible Conductor Gauge, stranded 22 AWG | 24 AWG
Electrical Specifications
Contact Resistance Variation, maximum 20 mOhm
Contact Resistance, maximum 100 mOhm760092429 MGS600-262 COMMSCOPE Cat6A Information Outlet, White
62.46 AEDAdd to cartCOMMSCOPE 760092429 | MGS600-262
GigaSPEED X10D® MGS600 Series Information Outlet, white
General Specifications
ANSI/TIA Category 6A
Cable Type Unshielded
Color White
Conductor Type Solid | Stranded
Termination Type IDC
Wiring T568A | T568B
Dimensions
Height 20.32 mm | 0.8 in
Width 20.38 mm | 0.802 in
Depth 30.48 mm | 1.2 in
Compatible Conductor Gauge, solid 22 AWG | 24 AWG
Compatible Conductor Gauge, stranded 22 AWG | 24 AWG
Electrical Specifications
Contact Resistance Variation, maximum 20 mOhm
Contact Resistance, maximum 100 mOhm- Cat6 Accessories, Cat6 Modules & Outlets, Cat6a Accessories, Cat6a Modules & Outlets, COMMSCOPE, Structured Networking
760161075 COMMSCOPE LF80 U/F/STP-262 Angled Shuttered Faceplate Module, White
4.00 AEDAdd to cartCOMMSCOPE 760161075
LF80 U/F/STP-262 Angled Shuttered Faceplate Module, White
General Specifications
Color White
Mounting Flush
Total Ports, quantity 1
Dimensions
Height 38.35 mm | 1.51 in
Width 24.89 mm | 0.98 in
Depth 13.21 mm | 0.52 in AX102282 BELDEN CAT6A IOGX, KEYSTONE MODULE (AUGMENTED) White-Only Faceplate & Floor Box Side. Not Compatible for Above Patch Panel
37.00 AEDAdd to cartBELDEN AX102282
DESCRIPTION
CAT6A IOGX, KEYSTONE MODULE (AUGMENTED) White-Only Faceplate & Floor Box Side. Not Compatible for Above Patch Panel
IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T
N420.66A Nexans Connector Category 6A
23.00 AEDAdd to cartN420.66A Nexans
Connector Category 6A
DESCRIPTION
Nexans LANmark-6A Evo Snap-In Connectors are manufactured and tested to the
latest Category 6A specifications defined in the International and American cabling
standards and are designed to meet or exceed the stringent quality and performance
criteria needed to support all applications up to 500 MHz, including 10 Gigabit
Ethernet.
A fully closed metal rear cover providing 360 degrees shielding offers excellent
coupling attenuation and ensures immunity from Alien Crosstalk and other external
interferences.
Channels built with LANmark-6A cables and jacks do not need on site testing for Alien
Crosstalk, as this parameter is met by design. This significantly reduces the installation
cost for 10G network cabling.
· 10 BASE-T Ethernet
· 100 BASE-T Fast Ethernet
· 1000 BASE-T Gigabit Ethernet
· 10G BASE-T Gigabit Ethernet IEEE 802.3
· 155 Mbit ATM
· 1.2 Gbit ATM
PoE++ Type 4 (IEEE 802.3bt) including IEC 60512-9-3/ed.2 (test 9c) and IEC
60512-99-002/ed.1 draft (test 99b)N420.66A Nexans LANmark-6A Snap-In Connector
23.00 AEDAdd to cartN420.66A Nexans
DESCRIPTION
Application
Nexans LANmark-6A Evo Snap-In Connectors are manufactured and tested to the latest Category 6A specifications defined in the International and American cabling standards and are designed to meet or exceed the stringent quality and performance criteria needed to support all applications up to 500 MHz, including 10 Gigabit Ethernet. A fully closed metal rear cover providing 360 degrees shielding offers excellent coupling attenuation and ensures immunity from Alien Crosstalk and other external interferences. Channels built with LANmark-6A cables and jacks do not need on site testing for Alien Crosstalk, as this parameter is met by design. This significantly reduces the installation
cost for 10G network cabling.• 10 BASE-T Ethernet
• 100 BASE-T Fast Ethernet
• 1000 BASE-T Gigabit Ethernet
• 10G BASE-T Gigabit Ethernet IEEE 802.3
• 155 Mbit ATM
• 1.2 Gbit ATM
PoE++ Type 4 (IEEE 802.3bt) including IEC 60512-9-3/ed.2 (test 9c) and IEC 60512-99-002/ed.1 draft (test 99b).- BELDEN, Cat6 Accessories, Cat6 Modules & Outlets, Cat6a Accessories, Cat6a Modules & Outlets, Structured Networking
NN01526 BELDEN Shutter Module for Faceplates Application, White
9.00 AEDAdd to cartBELDEN NN01526
Shutter Module for Faceplates Application, White
DESCRIPTION
6C (38.5x25mm) Modular Outlet Insert for Faceplate, Adapter Angled, 1 port
Height: 42 mm
Width: 25 mm
Depth: 31 mm
Front Connection: Angled
Packaging: Individually packaged in a plastic bag. SCSFPUK1WH Opterna Faceplate 86 x 86 mm for 1 Keystone Jack, U.K. Standard
4.50 AEDAdd to cartSCSFPUK1WH Opterna
DESCRIPTION
Opterna faceplates are manufactured of highly stable fire retardant and high density plastics which ensure product durability. It comes with a combination of 1, 2, 3 and 4 ports for your application and to satisfy your customer’s needs. Opterna faceplates are available in two series; the elegant series of Opterna faceplates comes with a peripheral frame providing an elegant appearance where in the screw holes are concealed by the peripheral frame. Part of the design is the integrated label holder which allows the installer to fix labels and hence making the faceplate TIA 606 compliant. The faceplate comes with an in-built shutter to prevent dust and dampness protection. The angled design of faceplate maintains the patch cords bend radius and provides extra room behind the back box for storage of cable. The angled faceplate is highly recommended for Category 6 and 6A shielded installations. Other variants of the faceplate series are the floor box adaptors available in straight and angled.

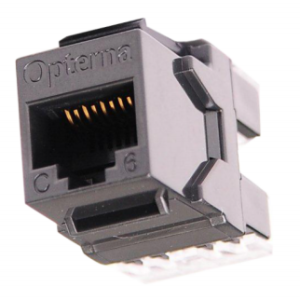

SCSJAC6AUTPBK Opterna 180° Cat 6A Unshielded Keystone jack with T568A/B label, Black
21.00 AEDAdd to cartSCSJAC6AUTPBK Opterna
DESCRIPTION
Opterna category 6 unshielded jacks are designed and manufactured to meet and exceed the current and future requirements for high bandwidth and forms an essential element of the structured cabling system. The keystone jacks are highly reliable and offers optimal network performance.
The jack forms part of the faceplate as well as part of the modular patch-panel. Clear wire retaining caps are supplied which provide additional cable strain relief.
The keystone jacks are color-coded for both 568A and 568B standards and can be terminated using a standard 110 termination tool.
Standards
• ANSI/TIA-568-C-2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4TL-JHC6AU TECHLOGIKS- RJ45 CAT6A Unshielded 18 Degree Keystone jack-WT
15.50 AEDAdd to cartTECHLOGIKS TL-JHC6AU
RJ45 CAT6A Unshielded 18 Degree Keystone jack-WT
DESCRIPTION
Techlogiks Cat 6A Keystone Jack is designed to easily snap in and out of the wall outlet, patch panel and surface mount box. It is individually terminated using Insulation Displacement Connectors (IDC) with punch down tool for quick installation. Fully automatic press-fit production of PCB assembly to ensure consistency quality and complies with international standards up to 10GHz
