13.00 AED

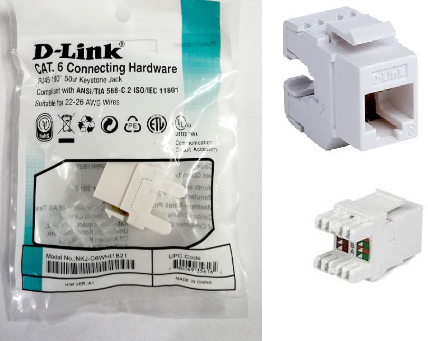

D-Link NKJ-C6WHI1B21
Cat6 UTP Keystone Jack – White Colour
DESCRIPTION
RJ45 8P 8C 180°C 50u Punch Down Jack
Terminating 4 pairs, 22-26 AWG Cable
Universal labels color coded for T568A
and T568B wiring schemes
Fitting high density keystone panel
UL, ETL certified
Available on backorder
D-Link NKJ-C6WHI1B21
Cat6 UTP Keystone Jack – White Colour
DESCRIPTION
RJ45 8P 8C 180°C 50u Punch Down Jack
Terminating 4 pairs, 22-26 AWG Cable
Universal labels color coded for T568A
and T568B wiring schemes
Fitting high density keystone panel
UL, ETL certified
COMMSCOPE 760092429 | MGS600-262
GigaSPEED X10D® MGS600 Series Information Outlet, white
General Specifications
ANSI/TIA Category 6A
Cable Type Unshielded
Color White
Conductor Type Solid | Stranded
Termination Type IDC
Wiring T568A | T568B
Dimensions
Height 20.32 mm | 0.8 in
Width 20.38 mm | 0.802 in
Depth 30.48 mm | 1.2 in
Compatible Conductor Gauge, solid 22 AWG | 24 AWG
Compatible Conductor Gauge, stranded 22 AWG | 24 AWG
Electrical Specifications
Contact Resistance Variation, maximum 20 mOhm
Contact Resistance, maximum 100 mOhm
NORDEN 121-31P18048B
Category 6 UTP Patch Panel Blank Punch Down 48 Port
DESIGN & MATERIALS
Panel Type Flat
Panel Style Blank
Mounting Style Punch Down (Module)
Panel Width 483 mm (19”)
Panel Height 1U: 44.2 mm & 2U: 88.4 mm
Panel Depth 109 mm
Outlet Style Unkeyed RJ-45
Outlets 24/48 Port
Connector Module Holder High Impact, Flame-Retardant Plastic Compound, Ul 94 V-0
Cover Colour and Material Black, Powder Coated Steel
STANDARDS
Wiring Standards EIA/TIA 568 A/B
Flammability rating UL 94V-0
Safety Rating UL1863
Transmission ISO/IEC 11801:2002 ANSI /TIA/EIA-568.B.2-10
NORDEN 121-31T18024B
Category 6 UTP Patch Panel Blank Tool Less 24 Port
DESIGN & MATERIALS
Panel Type Flat
Panel Style Blank
Mounting Style Tool Less (Module)
Panel Width 483 mm (19”)
Panel Height 1U: 44.0 mm, 2U: 88.4 mm
Panel Depth 79.5 mm
Outlet Style Unkeyed RJ-45
Outlets 24 & 48 Ports
IDC Contact 45° secure, gas tight connection
Connector Module Holder High Impact, Flame-Retardant Plastic Compound, UL 94 V-0
Cover Colour and Material Black, Powder Coated Steel
STANDARDS
Wiring Standards EIA/TIA 568 A/B
Flammability rating UL 94V-0
Safety Rating UL1863
