600.00 AED
D-link NCB-6AUGRYR-305
Cat6A 10G UTP 23AWG PVC Solid Cable – 305m/Roll – Grey Colour
DESCRIPTION
•Enhanced performance cable for transmission of high
speed data, digital and analogue voice and video (RGB)
signals on LANs
•Supports Gigabit Ethernet (10GbaseT) standard
•Operates at a bandwidth of 500MHz

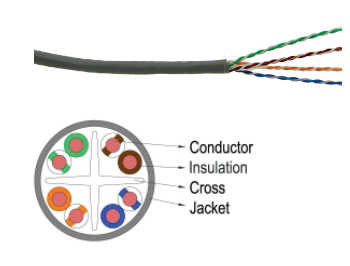

Conductor : 23 AWG Solid bare Copper
Insulation : High Density Polyethylene
Pairs : 2 Insulated conductors twisted together
Available on backorder
D-link NCB-6AUGRYR-305
Cat6A 10G UTP 23AWG PVC Solid Cable – 305m/Roll – Grey Colour
DESCRIPTION
•Enhanced performance cable for transmission of high
speed data, digital and analogue voice and video (RGB)
signals on LANs
•Supports Gigabit Ethernet (10GbaseT) standard
•Operates at a bandwidth of 500MHz
Conductor : 23 AWG Solid bare Copper
Insulation : High Density Polyethylene
Pairs : 2 Insulated conductors twisted together
SCSPCC6UTP02MLSZHGY Opterna
DESCRIPTION
Opterna UTP Patch cord conforms to ANSI/TIA-568-C.2, ISO/IEC 11801:2011 edition 2.2 and CENELEC EN 50173 (2011) for Category 6/Class E applications. The products have been tested up to 250MHz and are designed for high speed protocols such as Gigabit Ethernet (1000Mbps) applications. The Patch cords are constructed of a U/UTP stranded wire cable and comprises two modular plugs at both ends of the cables. The RJ45 plugs are protected with molded snag-less boots that prevents the latch on the RJ45 plugs from getting damaged during installation.
Applications
• Cross connect, Patch Panel and Work Area
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSL
Standards
• ANSI/TIA-568-C.2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• CENELEC EN 50173-1:2011
• ANSI/TIA-1096-A (formerly FCC Part 68)
• IEC 60603-7-4
127-31101WH Norden
DESCRIPTION
Norden Category 6 UTP patch cords are manufactured using high quality unshielded four pair Category 6 stranded cable, and feature cable strain relief boots with a plug latch protection cap. This patch cord when used with high performance Norden Category 6 connectivity (solid UTP cable,patch panels and work area outlets), provide superior performance capabilities of high bandwidth (Gigabit 1000Base-T and 1000Base-Tx)applications support. This is fully backward compatible to Category 5e (Class D) products.Each patch cord is tested with Fluke tester and individual cover includewith the report. Norden Category 6 Patch cord is tested for transmission frequencies of up to 250 MHz.
SCSUTP4C6LSZHGN Opterna
DESCRIPTION
Opterna 4 pair unshielded category 6 solid cables (U/UTP) has been designed for indoor applications and suitable for flawless 1G Ethernet networking, fully supporting the more demanding office communications including voice, data, VoIP, Video Conferencing, security, IP based cameras and other demanding real time applications. The cable covers the category 6 requirements for unshielded twisted pair cables of 100 Ω and is characterized up to 250 MHz suitable for transmitting data over local area networks (LANs). The cable’s 8 conductors (4-Pairs) are of solid bare copper with high density polyethylene (HDPE) insulation and a PVC/LSZH jacket. Two insulated conductors are twisted together to form a pair and the four pairs with different twist ratio are laid up to form the basic cable unit.
Applications
• Horizontal Distribution and Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps 1.2G ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSL
• HVAC alarm systems and other signalling
Standards
• UL 444
• TIA/EIA-568-C-2
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• IEC61156-5
• CENELEC EN 50173-1:2011
• EN50288-5-1
• IEC 60603-7-2
