Subtotal: 7.75 AED
16.00 AED

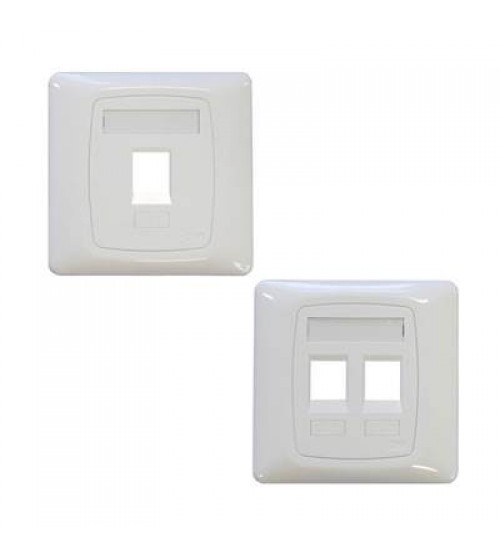

3M VOL-FPUK-LJ6C-F2K
UK (86 x 86mm) Faceplates and Adapters LJ6C Style
Specification
Technical characteristics
Flat faceplates – size (h x w x d)
Single gang – 86 x 86 x 10mm
Double gang – 86 x 147 x 10mm
Faceplate apertures (h x w)
LJ6C – single gang single slot –38.7 x 25mm
Single gang double LJ6C – 2 slot –38.7 x 25mm
Double gang 4 slot –38.7 x 25mm
Adapters (h x w) 38.7 x 25mm
Available on backorder
3M VOL-FPUK-LJ6C-F2K
UK (86 x 86mm) Faceplates and Adapters LJ6C Style
Specification
Technical characteristics
Flat faceplates – size (h x w x d)
Single gang – 86 x 86 x 10mm
Double gang – 86 x 147 x 10mm
Faceplate apertures (h x w)
LJ6C – single gang single slot –38.7 x 25mm
Single gang double LJ6C – 2 slot –38.7 x 25mm
Double gang 4 slot –38.7 x 25mm
Adapters (h x w) 38.7 x 25mm
COMMSCOPE 107067928 | M20AP-262
M20 Dust Cover for MSeries Faceplates and Outlets, white
General Specifications
Product Type Cover
Color White
Package Quantity 100
Mechanical Specifications
Material Type High-impact,
flame retardant, thermoplastic
NORDEN 121-31V18012L
CATEGORY 6 UTP PATCH PANELVERTICAL LOADED 12P
DESIGN & MATERIALS
Panel Type Vertical
Panel Style Loaded
Mounting Style Punch Down (Module)
Panel Width 57 mm
Panel Height 255 mm
Panel Depth 40 mm
Outlet Style Unkeyed RJ-45
Outlet 12 Port
Angle 180 Degree
Connector Module Holder 110 Style IDC Termination
Panel Holder Material Plastic & Metal
Cover Colour and Material Black, Powder Coated Steel
STANDARDS
Wiring Standards EIA/TIA 568 A/B
COMMSCOPE 760092361 | MGS600-003
GigaSPEED X10D® MGS600 Series Information Outlet, black
General Specifications
ANSI/TIA Category 6A
Cable Type Unshielded
Color Black
Conductor Type Solid | Stranded
Termination Type IDC
Wiring T568A | T568B
Dimensions
Height 20.32 mm | 0.8 in
Width 20.38 mm | 0.802 in
Depth 30.48 mm | 1.2 in
Compatible Conductor Gauge, solid 22 AWG | 24 AWG
Compatible Conductor Gauge, stranded 22 AWG | 24 AWG
Electrical Specifications
Contact Resistance Variation, maximum 20 mOhm
Contact Resistance, maximum 100 mOhm
