Description
RITTAL 7955111

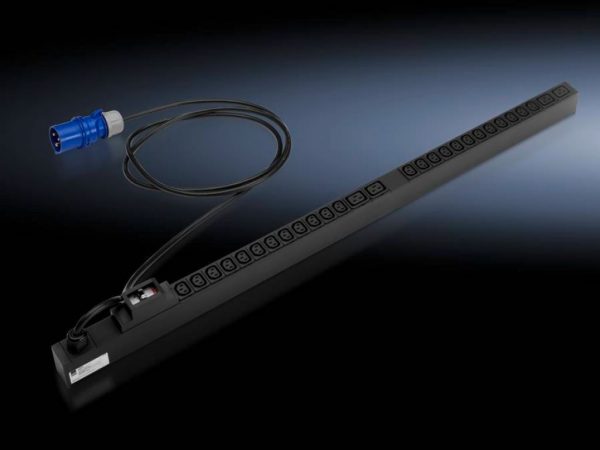

PDU Basic 32A/1P CEE 24xC13 / 4xC19
Description
Robust, compact basic power distributor for the IT environment. Thanks to the compact
PDU, any IT rack may be easily equipped with a professional power distribution system.
With the TS IT rack, assembly is even tool-free. The compact design allows simple assembly.
Material Aluminium section, black anodised
Protection category IP to IEC 60 529 IP 20
Design PDU Basic
To fit TS IT
TS 8
Height: ‰¥ 1800 mm
Dimensions Width: 44 mm
Depth: 62 mm
Length: 1115 mm
Rated current (max.) 32 A
Type of electrical connection CEE
Length of connection cable 3 m
Sockets 24 x IEC 320 socket C13 – Black
4 x IEC 320 socket C19 – Black
Standards EN 60 950-1
Directives EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
Infeeds Qty.: 1
Phases per infeed: 1~
Ambient conditions Operating temperature: +0°C…+45°C
Storage temperature: -25°C…+70°C
Ambient humidity (non-condensing): 10 % – 95 %
Circuit-breaker 16 A (qty.) 2
Packs of 1 pc(s).Weight/pack 4.09 kg
